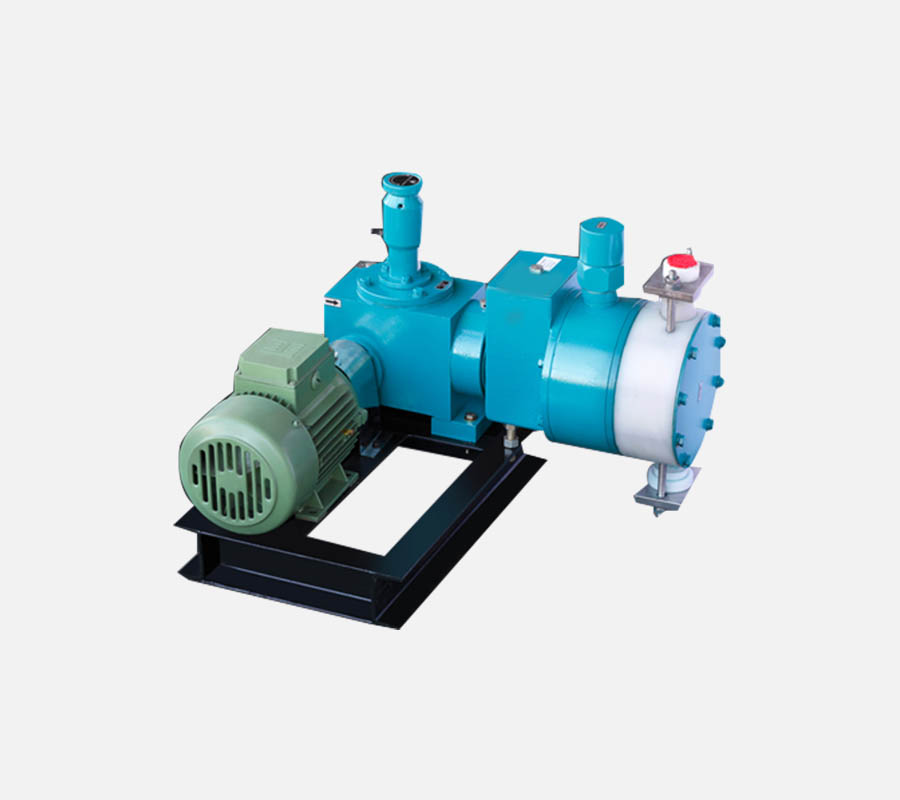

Hydraulically Actuated Diaphragm Pump

Features :

• Conforms to API 675 standard
• Very Economical.
• Heavy duty construction designed for severe industrial application.
• Easy to maintain with zero leakages.
• Hydraulically Balanced Sandwich (Double) Diaphragm with Rupture Detection.
• Integrated hydraulic relief and bleed valve
• Turn down ratio 10:1
• Repeatability +3%
• Linearity +3%
• Accuracy up to ± 1%
• Stroke volume adjustment range: 0 – 100%
• Stroke volume adjustment: manually using scaled rotary dial (with electric actuator or control drive as an option).
• Available in variable / fix stroke.
• Available with jacketing molten liquids.
• Modular Configurations: Simplex, Duplex, Triplex and Quadriplex

Material Of Construction

• Reagent head: PTFE, PP, PVDF, AISI 316L, AISI 304, AISI 316, Alloy 20, Hastelloy C
• Check Valves: PTFE, PP, PVDF, AISI 316L, AISI 304, AISI 316, Alloy 20, Hastelloy C
• Metal Gearbox: Cast Iron
• Diaphragm: PTFE / Metallic (SS304/SS316)
