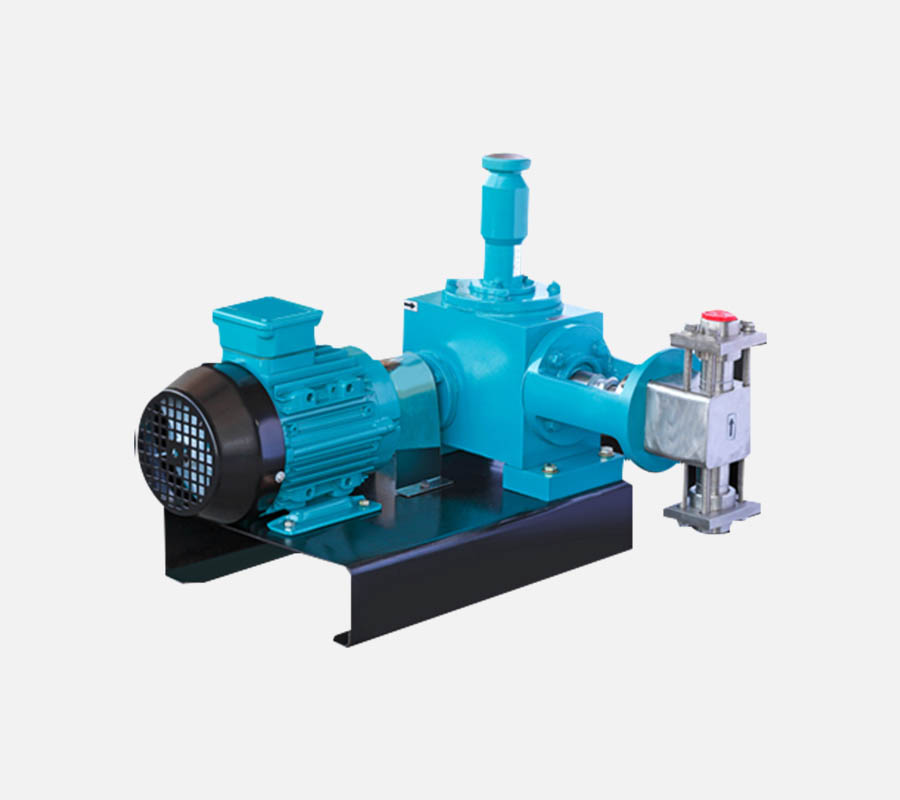

Plunger Pump
Features :
- Low pulsations.
- Very Economical.
- Conforms to API 675 standard.
- Leakage Proof Plunger head design.
- low maintenance.
- Turn down ratio 10:1
- Optional automatic control (stroke length/speed).
- Ideally suited for HP and LP dosing system.
- High pressures range up to 380 Kg/cm2.
- Steady state metering accuracy of +/-1 % of pump output.
- Single setting of stroke from 10%-100% by interlocking mechanism
- High flow rates of 0-10,000 liters/hr
- Stroke adjustment by variable eccentric
- Simplex and Multiplex arrangements of pumps with common drive available for universal use
- Repeatability better than + /- 3% of set point
Material Of Construction :
- Liquid head: AISI 316L, AISI 304, AISI 316.
- Check Valves: PTFE, PP, PVDF, AISI 316L, AISI 304, AISI 316, Alloy 20, Hastelloy C
- Check Valves: AISI 316L, AISI 304, AISI 316.
- NRV ball: AISI 316L, AISI 304, AISI 316, Ceramic.
| Sr. No. | Pump Model | Capacity Max (LPH) | Pressure Max (Kg/cm2) |
| 1 | DMP 1000 | 0 TO 150 | 76 |
| 2 | DMP 2000 | 0 TO 760 | 156 |
| 3 | DMP 3000 | 0 TO 2900 | 288 |
| 4 | DMP 4000 | 0 TO 8000 | 384 |
Application :
- Oil & Gas
- Chemical
- Power plant
- Detergents
- Institutes
- Food & Beverages
- Fertilizers
- Nuclear Reactor
- Water Treatment
- Paints
- Steel
- Textiles
- Paper
- Pharmaceuticals
- Consultancy Agencies
- Power
- Petroleum
- Marine Application
- Mines
Note :
We can also provide the Trolley mounted Plunger pump with essential arrangement which is used for Hydrostatic Pressure Test of equipment Like Pressure vessels (ASME SEC VIII DIV I), Heat exchangers, Injection quills, Dampeners, Jacketed tanks etc.
Optional Accessories for Dosing Applications :
If required by user, this Pump can also be supplied with suitable followed accessories.
- Chemical Flow Meters
- Ex. Pressure relief valve (PRV)
- Back pressure Valve
- Anti Syphon Valves
- Calibration Cylinders
- Electronic remote stroke control for flow adjustment
- Rota Meters
- Suction strainer
- Pulsation Dampeners
- Low Level Switch
- Hot or Cold water Jacketing for liquid end for cooling or heating
- Flow / No Flow Switches
- Pressure Switches
- Control Panels
- VFD (AC Speed Drives)
- PLC fitted SCADA based Panels
- Level Sensors
- Tank Agitators
- On Line Static Mixers
- Integrated pH-ORP-Chlorine-TDS Controllers and sensors
- Tank Level Indicators.
